產品簡介
SMQ671F氣動對夾超薄球閥(亦稱氣動球閥)是引進意大利技術進行國產化設計而發展出的新一代超短法蘭距球閥，是由單(雙)作用活塞式氣動執行器及超薄球閥組成。雙德氣動超薄球閥可配以閥門定位器輸入控制信號(4-20mADC或1-5VDC)氣源即可控制運轉。亦可配行程限位開關、電磁閥、減壓閥及0.4～0.7MPa氣源可實現開關操作，并送出二對無源觸點信號指示閥門的開關。氣動超薄球閥(氣動對夾球閥)球芯通道形狀有矩形、V形及O形。氣動超薄球閥具有結構緊湊、體積小、重量輕、安裝方便等特點。故氣動超薄球閥(氣動對夾球閥)廣泛應用在石油、化工、冶金、電站、輕工等領域，對油、水、氣及紙漿或纖維狀流體進行自動調節或切斷控制。

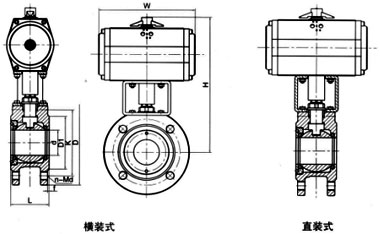

連接尺寸：
| SMQ671F-16 | ||||||||||
| 通徑DN | d | L | D | K | D1 | n-Md | f | H | W | |
| mm | in | |||||||||
| 10 | 3/8″ | 10 | 32 | 85 | 60 | 38 | 4-M12 | 2 | 165 | 104 |
| 15 | 1/2″ | 14 | 35 | 90 | 65 | 46 | 4-M12 | 2 | 180 | 140 |
| 20 | 3/4″ | 19 | 38 | 100 | 75 | 56 | 4-M12 | 2 | 185 | 140 |
| 25 | 1″ | 24 | 42 | 110 | 85 | 65 | 4-M12 | 2 | 190 | 140 |
| 32 | 1 1/4″ | 29 | 50 | 130 | 100 | 76 | 4-M16 | 3 | 205 | 164 |
| 40 | 1 1/2″ | 38 | 60 | 145 | 110 | 84 | 4-M16 | 3 | 220 | 164 |
| 50 | 2″ | 48 | 70 | 160 | 125 | 99 | 4-M16 | 3 | 255 | 190 |
| 65 | 2 1/2″ | 50 | 95 | 180 | 145 | 118 | 4-M16 | 3 | 280 | 210 |
| 80 | 3″ | 65 | 118 | 195 | 160 | 132 | 8-M16 | 3 | 330 | 247 |
| 100 | 4″ | 95 | 140 | 215 | 180 | 156 | 8-M16 | 3 | 370 | 276 |
| 125 | 5″ | 118 | 195 | 245 | 210 | 184 | 8-M16 | 3 | 460 | 348 |
| 150 | 6″ | 150 | 260 | 280 | 240 | 211 | 8-M20 | 3 | 540 | 378 |
| 200 | 8″ | 200 | 350 | 335 | 295 | 266 | 12-M20 | 3 | 670 | 432 |
| SMQ671F-16P | ||||||||||
| 通徑DN | d | L | D | K | D1 | n-Md | f | H | W | |
| mm | in | |||||||||
| 10 | 3/8″ | 10 | 32 | 85 | 60 | 38 | 4-M12 | 2 | 165 | 104 |
| 15 | 1/2″ | 14 | 35 | 90 | 65 | 46 | 4-M12 | 2 | 180 | 140 |
| 20 | 3/4″ | 19 | 38 | 100 | 75 | 56 | 4-M12 | 2 | 185 | 140 |
| 25 | 1″ | 24 | 42 | 110 | 85 | 65 | 4-M12 | 2 | 190 | 140 |
| 32 | 1 1/4″ | 29 | 50 | 130 | 100 | 76 | 4-M16 | 3 | 205 | 164 |
| 40 | 1 1/2″ | 38 | 60 | 145 | 110 | 84 | 4-M16 | 3 | 220 | 164 |
| 50 | 2″ | 48 | 70 | 160 | 125 | 99 | 4-M16 | 3 | 255 | 190 |
| 65 | 2 1/2″ | 50 | 95 | 180 | 145 | 118 | 8-M16 | 3 | 280 | 210 |
| 80 | 3″ | 65 | 118 | 195 | 160 | 132 | 8-M16 | 3 | 330 | 247 |
| 100 | 4″ | 95 | 140 | 215 | 180 | 156 | 8-M20 | 3 | 370 | 276 |
| 125 | 5″ | 118 | 195 | 245 | 210 | 184 | 8-M24 | 3 | 460 | 348 |
| 150 | 6″ | 150 | 260 | 280 | 240 | 211 | 8-M24 | 3 | 540 | 378 |
| 200 | 8″ | 200 | 350 | 335 | 295 | 274 | 8-M24 | 3 | 670 | 432 |
結構長度：Q/OLF002-88
法蘭標準：JB亦可按GB9113、ANSI B16.5 \JIS B2212
